The RF Series, features advanced Core technology. It is up to 5x stronger, 60% lighter, and over twice as dimensionally stable as standard acoustic panels. Each panel features a fiberglass-reinforced composite shell, heat and pressure-fused to a rigid core for a sealed, stable structure. Engineered for reflective control, the RF Series delivers superior sound absorption across a broad frequency range.

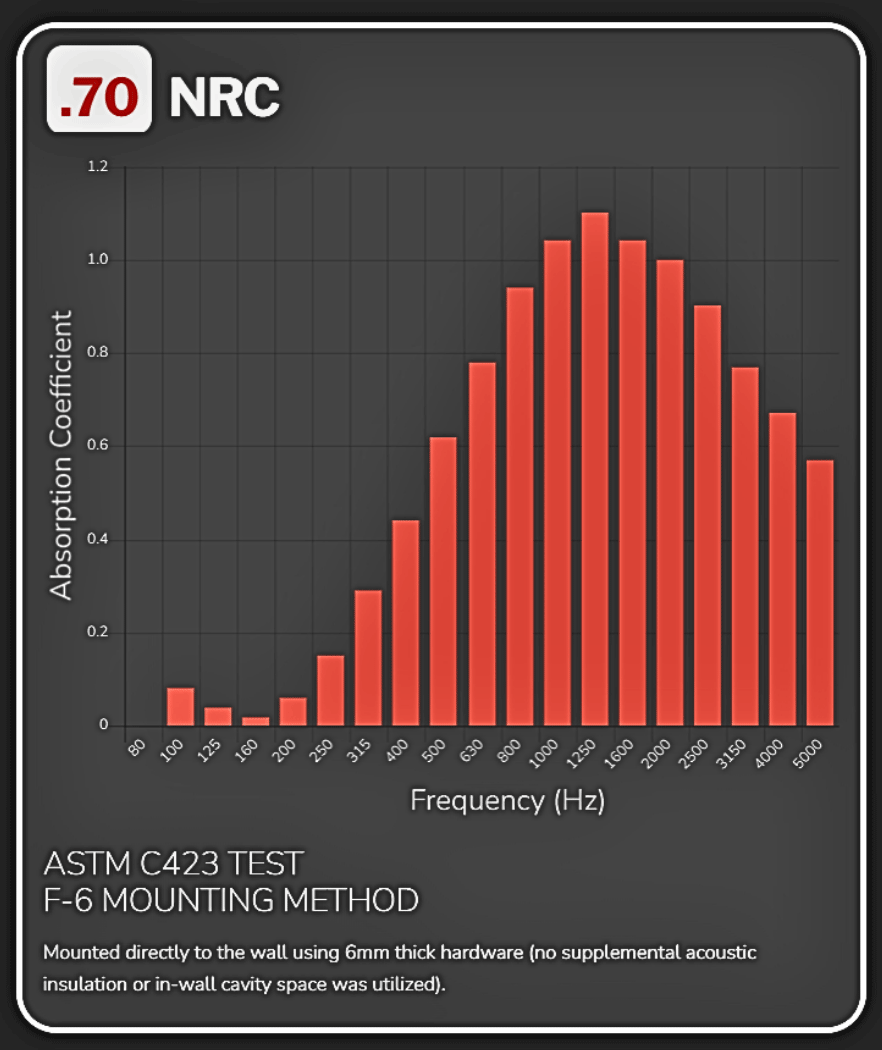

RF-19 Series
Maximum Size:
60″ x 144″ lengths
Thickness:
3/4″ (19mm)
Weight:
21.7 lbs/sq. ft. (8.3 kg/sq. m)
CAC:
43 ASTM-E1414

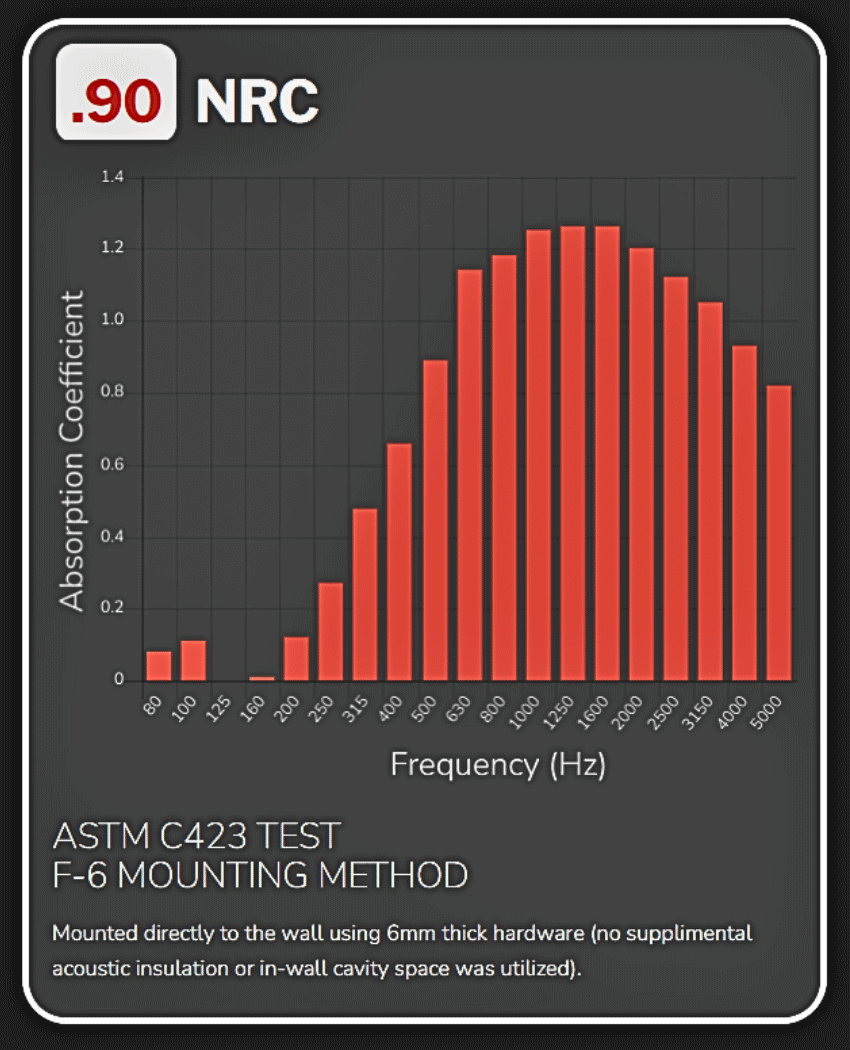

RF-25 Series
Maximum Size:
60″ x 144″ lengths
Thickness:
1″ (25mm)
Weight:
1.9 lbs/sq. ft. (9.28 kg/sq. m)
CAC:
46 ASTM-E1414
STC:
37 ASTM-E336

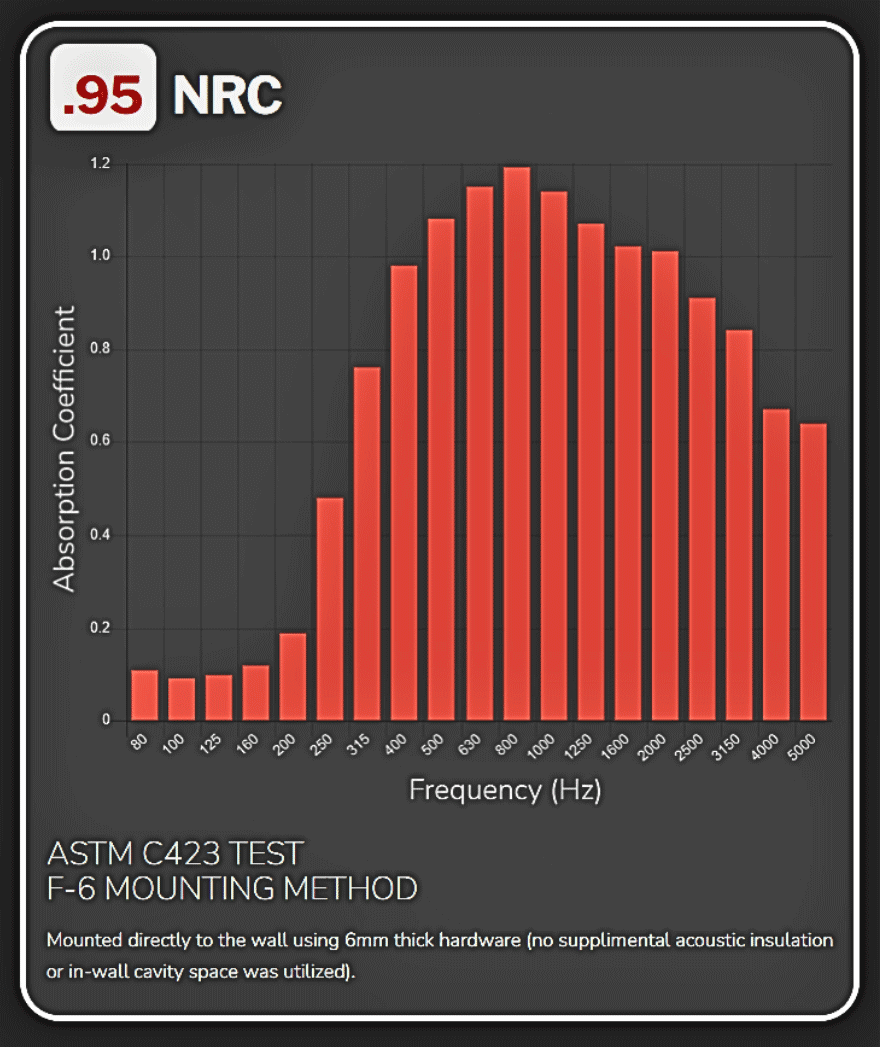

RF-38 Series
Maximum Size:
60″ x 144″ lengths
Thickness:
1 1/2″ (38mm)
Weight:
2.2 lbs/sq. ft. (10.74 kg/sq. m)
CAC:
46+ ASTM-E1414
STC:
37+ ASTM-E336

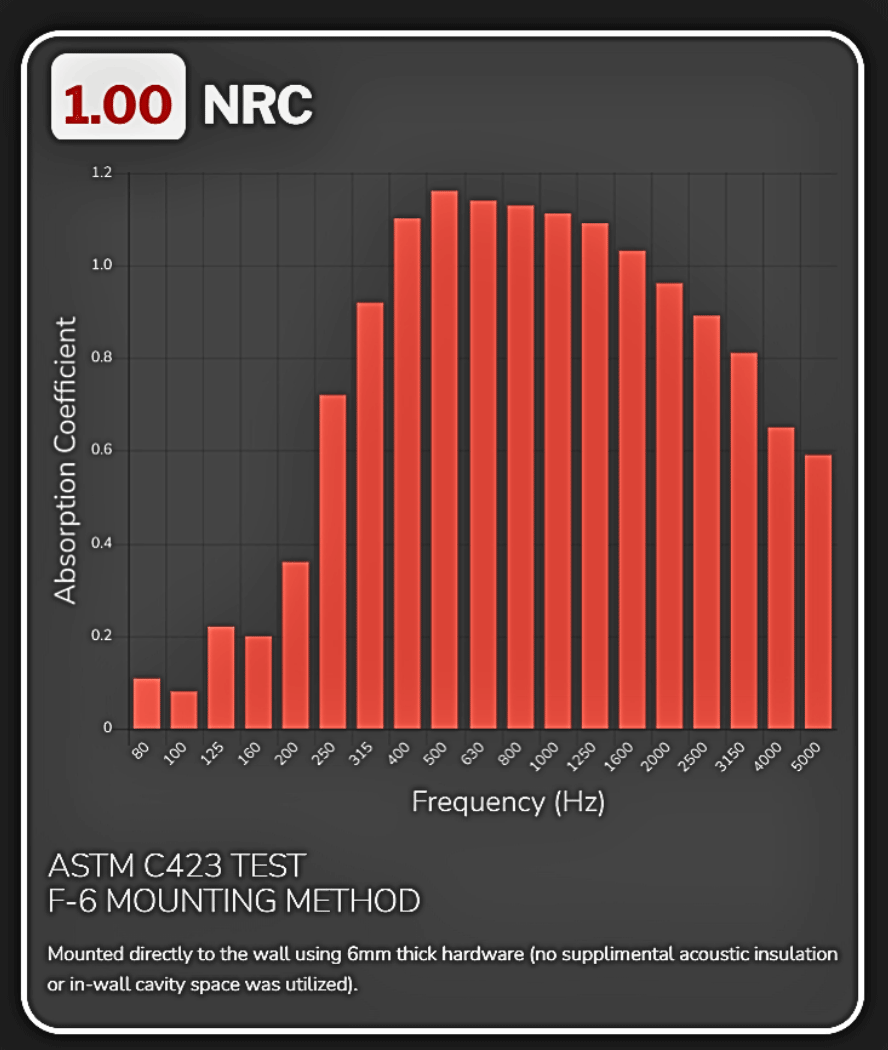

RF-51 Series
Maximum Size:
60″ x 144″ lengths
Thickness:
2″ (51mm)
Weight:
2.7 lbs/sq. ft. (13.18 kg/sq. m)
CAC:
46+ ASTM-E1414
STC:
37+ ASTM-E336
Quiet Core RF Series Product Information Sheet (opens in a new tab)
